Cat. 6A, Quick Connect Keystone Jack 10 Gbps rated, 110 IDC. Colours: XX = BL, WH
Part Number: NW-108K6AQC-XX
Availability: Inquire
Availability: Inquire

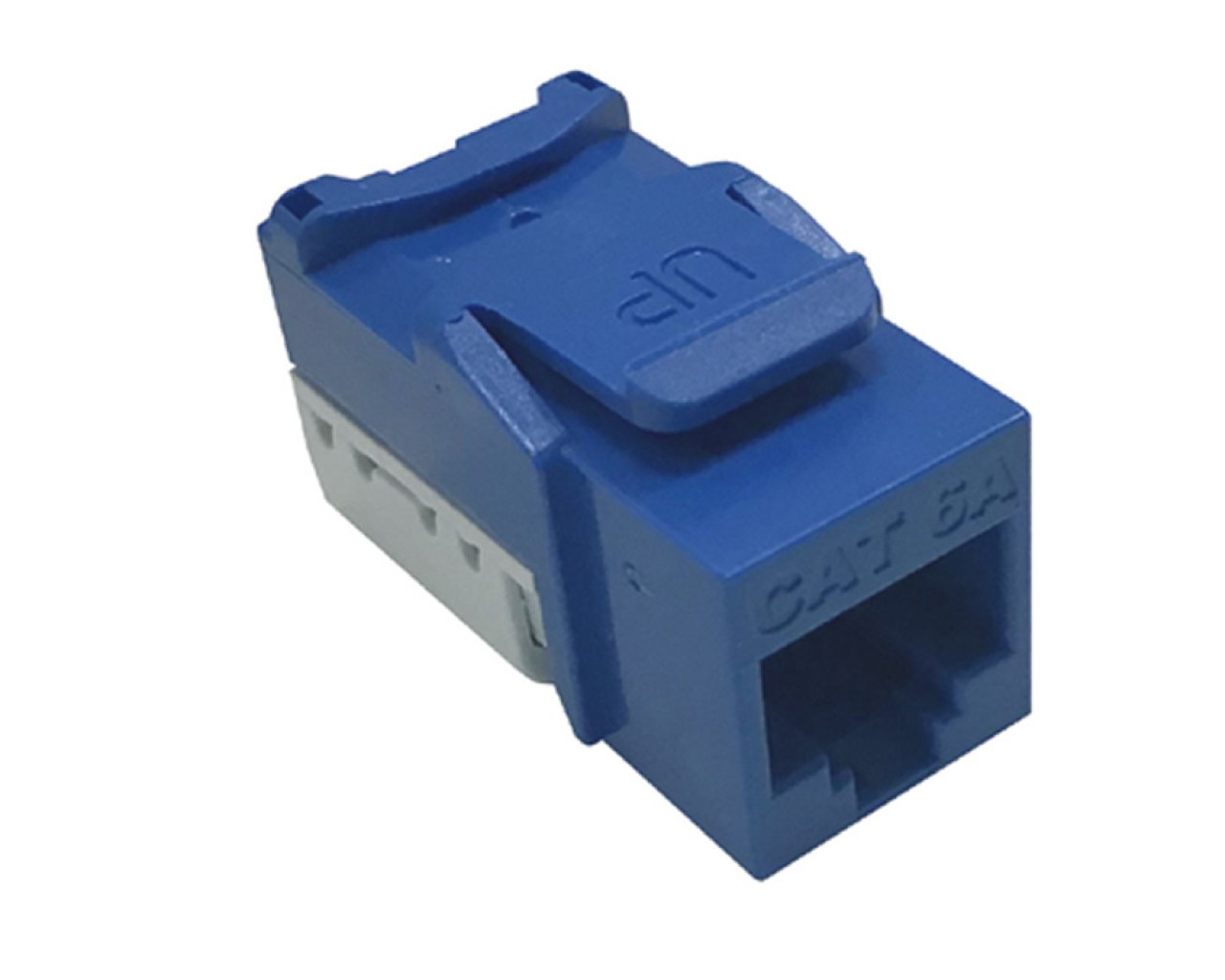

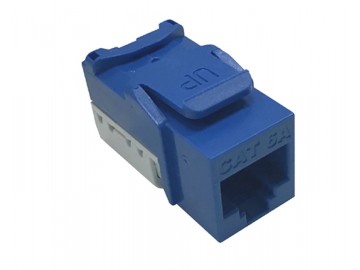

Cat. 6A Quick Connect Keystone Jack, 10 Gbps rated, 110 IDC.
Colours: XX = BL, WH
Overview
Cat. 6A Quick Connect Keystone Jack is engineered to save time and labour. Quick Connect Tool (NWCT-QC) terminates and cuts all 3 or 4 pairs instantly. Featuring enhanced NEXT, FEXT and Low Return Loss together with protection against Alien Cross talk that exceeds Category 6A standards for 10 Gbps. The PCB design eliminates the split pairs to reduce installation time. Meets or exceeds EIA /TIA 568.2-10 standards and IEEE 802.3 an rev 1.0 application requirements.
Features
- The Quick Connect Tool (NWCT-QC) terminates and cuts all four pairs instantly
- Engineered for 10 Gbps cabling system
- PCB design eliminates the split pairs to reduce installation time
- 110 IDC (110 punch tool can be used on this jack)
- Includes an integrated T568 A/ B Color Codes
- Low profile
- Compatible with any NWT Flush Mount Plate, Surface Mount Boxes and Blank HD Patch Panels.
- Exceeds EIA /TIA 568.2-10 standards and IEEE 802.3 an rev 1.0 application requirements.
- 50 Micron gold over 100 Micron nickel plated on Modular Jack pins.
- IDC accepts 23 - 24 AWG solid copper wire cable
- UL/ CUL approved according to EIA/ TIA standards
- Colour availabe: XX = BL (Blue), WH (White)
