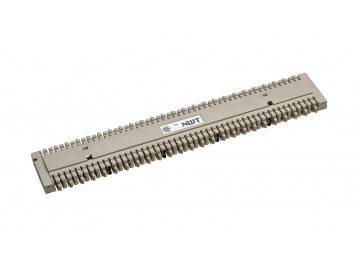

BIX-Type NWT Connector 25 pair, 5 pair marking

Part Number: NWT-1A
Availability: Inquire

BIX-Type NWT Connector 25 pair, 5 pair marking


BIX-Type NWT Connector from New World Telecom is a 50 pin - 25 pair Connector that allows the cross connection of UTP or Cross Connect Wire.

The connector is equipped with 50 double-ended IDC clips for terminating plastic insulated solid copper conductors without stripping or splitting pairs on each side of the connector.


Housing material: Fire-retardant thermoplastic
IDC clips: Phosphorus bronze with tin plating over nickel

Mechanical Characteristics:
Connection: 22, 24 & 26 AWG plastic insulated solid copper conductors
Durability: 200 Insertions.

Electrical Characteristics:
Dielectric Strength: 1000 Volts RMS at 60 Hertz for 1 Minute
Current Rating: 1.5 Amperes maximum
Insulation Resistance: 100 mega ohm minimum between clips
Contact Resistance: 1 milli-ohm per contact
