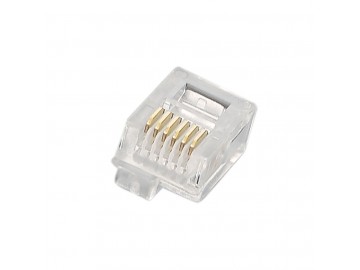

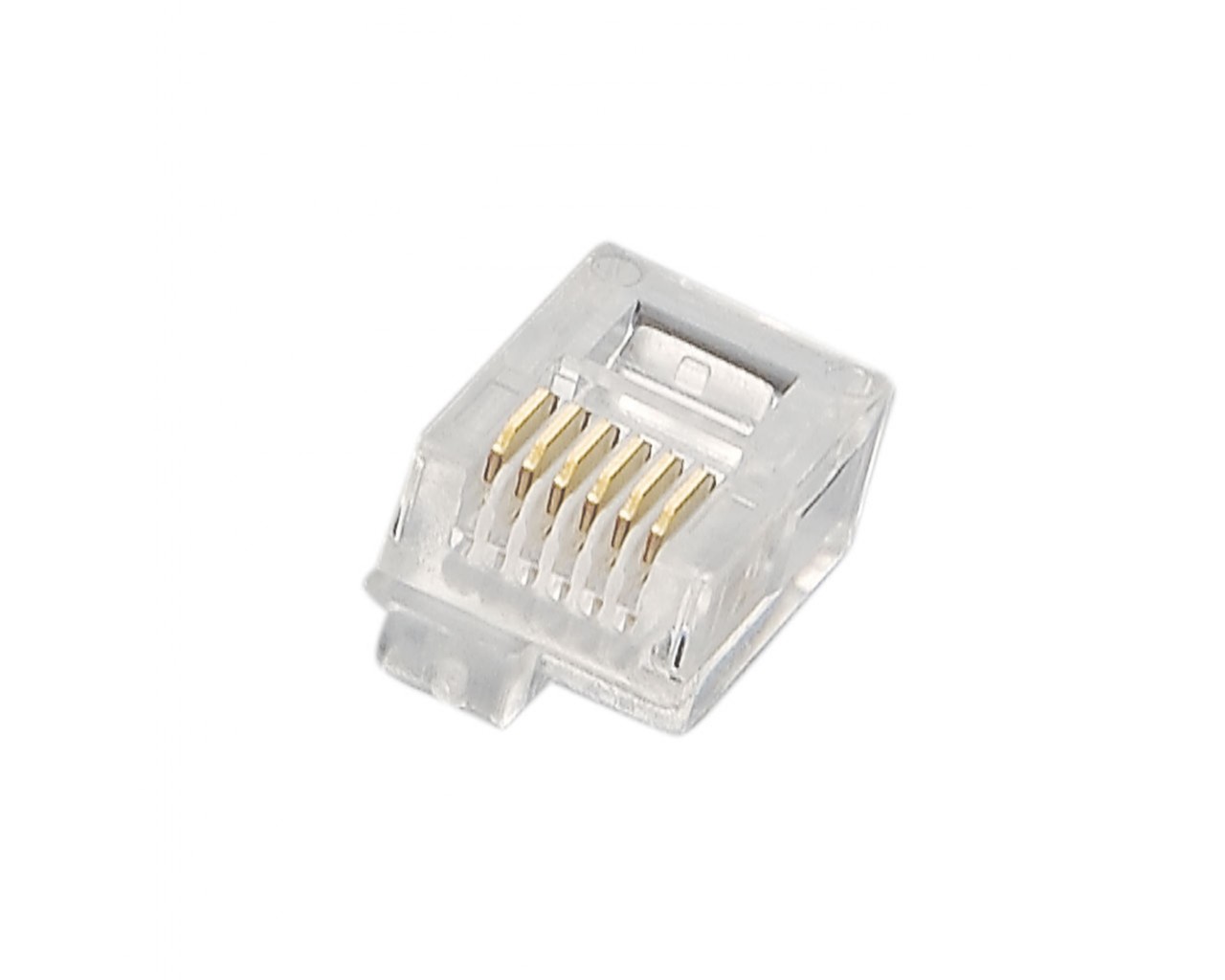

Modular Plug 6P6C, DEC type - Offset - MMJ

Part Number: NWP-6P6C-DEC
Availability: Inquire

Modular Plug 6P6C, DEC type - Offset - MMJ

Features:

  • 6 Position 6 Contact DEC type
  • Used for data cord
  • For stranded wire
  • Flat cord entry
  •  Accepts 24 to 28 AWG stranded wires
  •  Used with NWCT-AIORT tool
  •  UL, CUL & CSA approved

Specifications:

Electrical:

  • 250 VAC maximum at 2 Amps
  • Dielectric with-standing 500 VAC
  • Insulation Resistance: 500 Megaohms
  • Termination Resistance: 35 Megaohms

Gold Plating:

  • Per MIL-G-45204C, Type II (99% pure gold minimum)
  • Grade C+ (Knoop hardness range 130-250)
  • Class 1 (50 microns minimum thickness)

Mechnical:

  • Cable to plug tensile strength: 20 lbs (89N) minimum
  • Durability: 2000 mating cycles

Material and Finish:

  • Housing material: Polycarbonate (PC) (UL listed)
  • 94V-0 (UL 1863 DUXR2)
  • 94V-2 (UL 498 ECBT2)
  • Contact blade: Phosphor Bronze, high strength copper alloy, 100 microns nickel under plated and gold selected

Operating Temperature:

  • -40C to +125C
